Configure Port Forwarding for Remote Workers (Firebird Database)

Note: This guide is only for CurrentWare connecting to a Firebird Database. Running the default SQL Database with CurrentWare? Read this guide instead


Connecting the CurrentWare Clients (Remote workers)

To connect your CurrentWare Clients to the CurrentWare Server over the Internet, you will need to port forward the CurrentWare traffic from your network’s router to the CurrentWare Server computer.

#1 – Configure your CurrentWare Server to Receive Port Forwarding Traffic

First, you will need to set up your CurrentWare Server on a network that has a Public Static IP address (obtained from your Internet service provider).

Then, you will need to configure your router’s setting. On your router’s configuration page, go to the Port Forwarding Settings

Forward the following port traffic to the IP address of your CurrentWare Server computer.

Ports to forward: 8989-8999, 443, 3050  (TCP/UDP)

Detailed:
8989 TCP/UDP – Client Connection Port
8990 TCP/UDP – Console Connection Port
8991 TCP/UDP – Client Connection Port
8992 TCP/UDP – Client Data Upload
8993 TCP/UDP – Screen Capture
8994 TCP/UDP – HTTPS Filtering
8995 TCP/UDP – URL Retrieval Socket
8996 TCP/UDP – Webservice Port
8997 TCP/UDP – Rest API
8998 TCP/UDP – Webconsole
8999 TCP/UDP – URL Retrieval Socket Failover
3050 TCP/UDP – Firebird Database (Only v6.0.0 or older)
443  TCP/UDP – For Port Forward setup only

This is a sample picture of a Linksys router’s port forwarding configuration screen. If you are not using Linksys, the menu items and labels may vary.

port-forward-linksys

This is how the port forward configuration will look like for a D-Link Router:

port-forward-dlink

Don’t know how to get into your router’s configuration page? Check out this resource on how to open Ports on Your Router.

#2 – Installing the CurrentWare Client

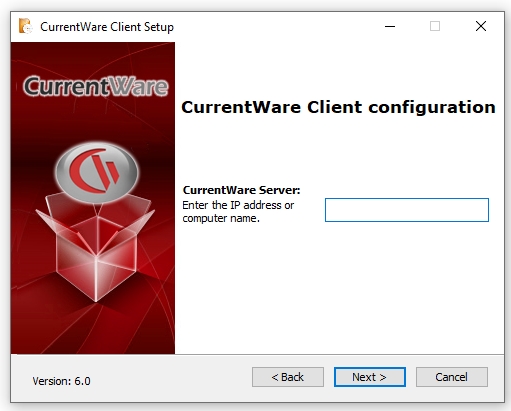

Install the CurrentWare Client by running the cwClientSetup.exe file on the Client computer.

During the installation, put in the Public IP address, hostname or DDNS of the CurrentWare Server’s Network.

CurrentWare Client Configuration

Having issues connecting the external CurrentWare clients?

  1. Make sure the public IP address of your CurrentWare Server network has a static IP address
  2. Make sure your Firewall is not blocking the CurrentWare traffic

Using the CurrentWare Console Outside the Network

The Web Console of CurrentWare it has been made very simple to access your Administrative console from anywhere. All you need to know is the Public IP address (ex. 172.217. 22.14) where your CurrentWare server is installed on.

Note: You must change a couple more settings to setup your Web Console to be available outside your local network. You can find that knowledge base article here.

  1. Create your operators in the CurrentWare desktop application by going to Tools> Operators. You do not need to enable password security or stricter password policies for your operator account to work with the Web Console login page.
  2. Open the browser of your choice. The Web Console is fully function with all internet browsers.
  3. Enter your CurrentWare servers Public IP the browser URL bar with :8998 following it. An example would be 172.217. 22.14:8998.
  4. You will get the login page. You can enter your Operator Username and Password created in step #1.
Login

Even when your computer is outside the network of the CurrentWare Server, you can connect the CurrentWare Console to it over the Internet to manage your CurrentWare solutions.

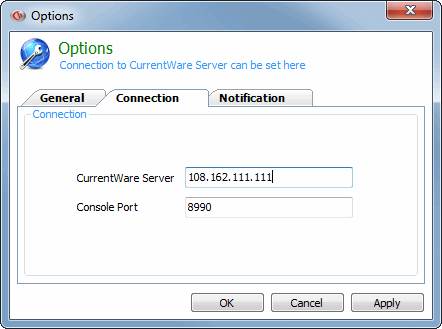

On the CurrentWare Console, go to Tools > Options > Connection > Type in the public IP address of the CurrentWare Server
